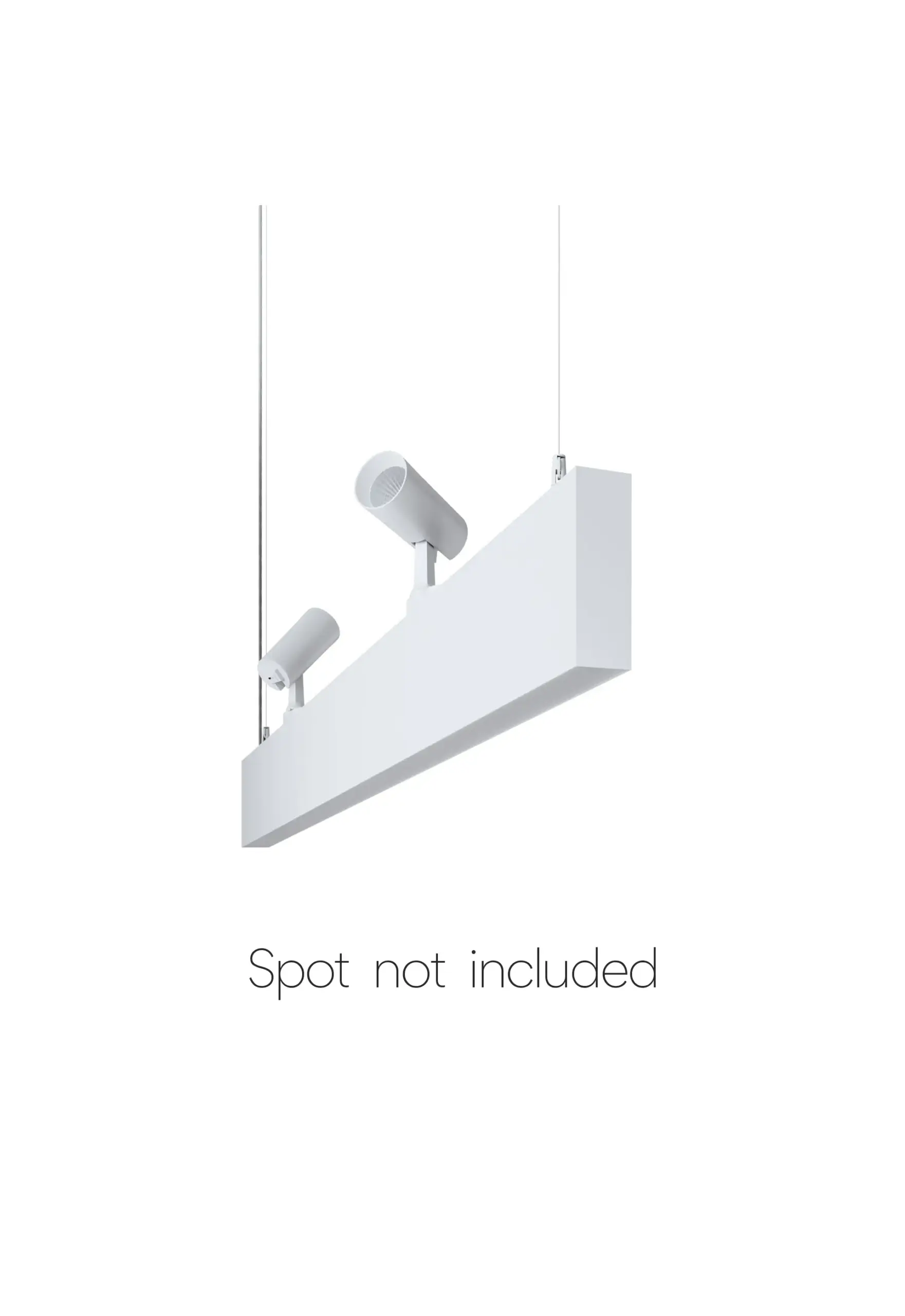

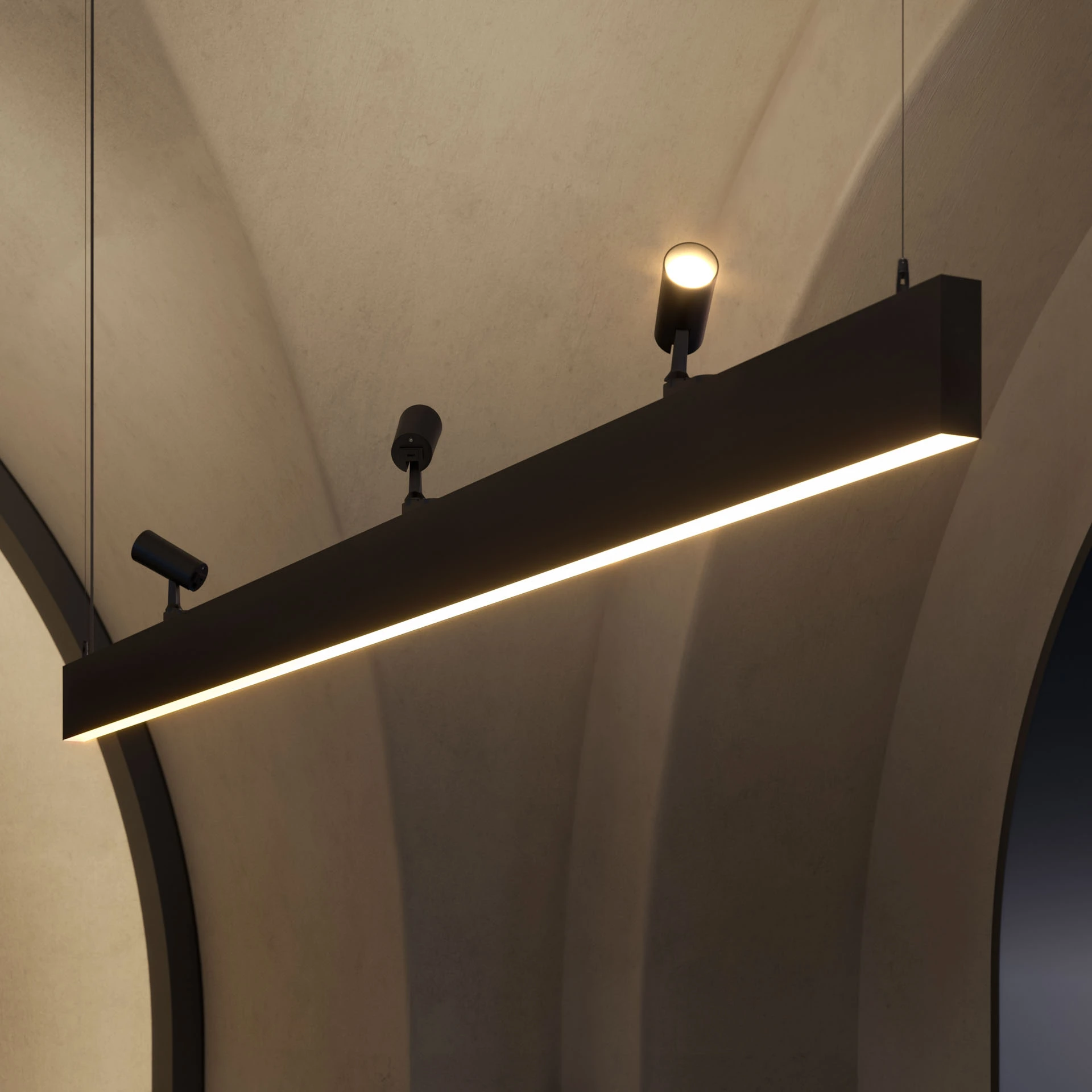

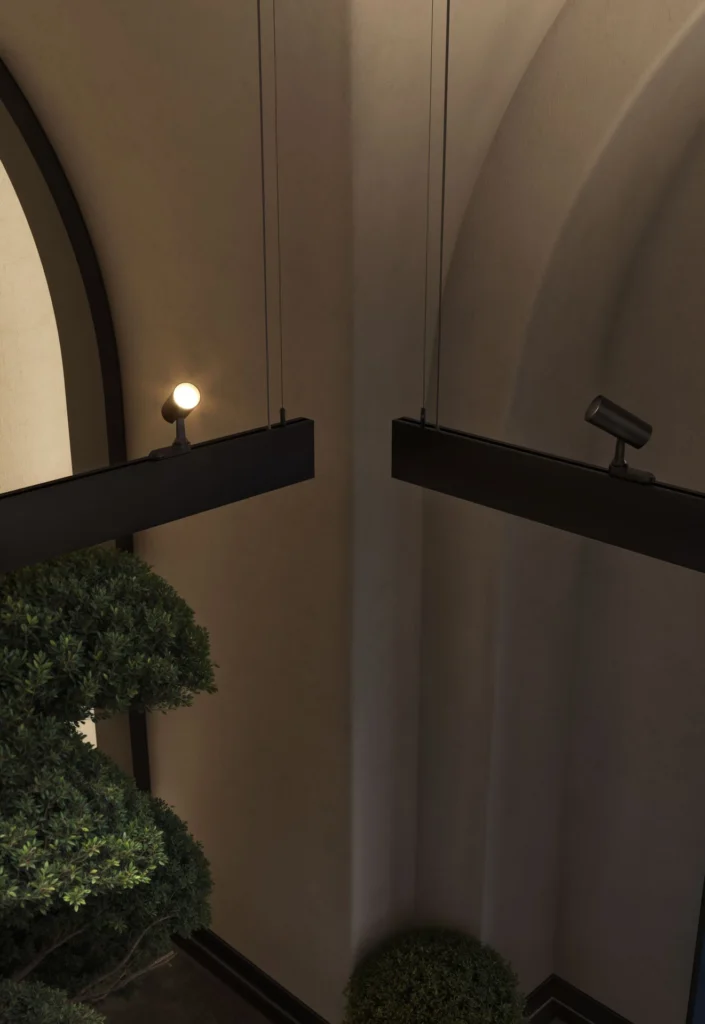

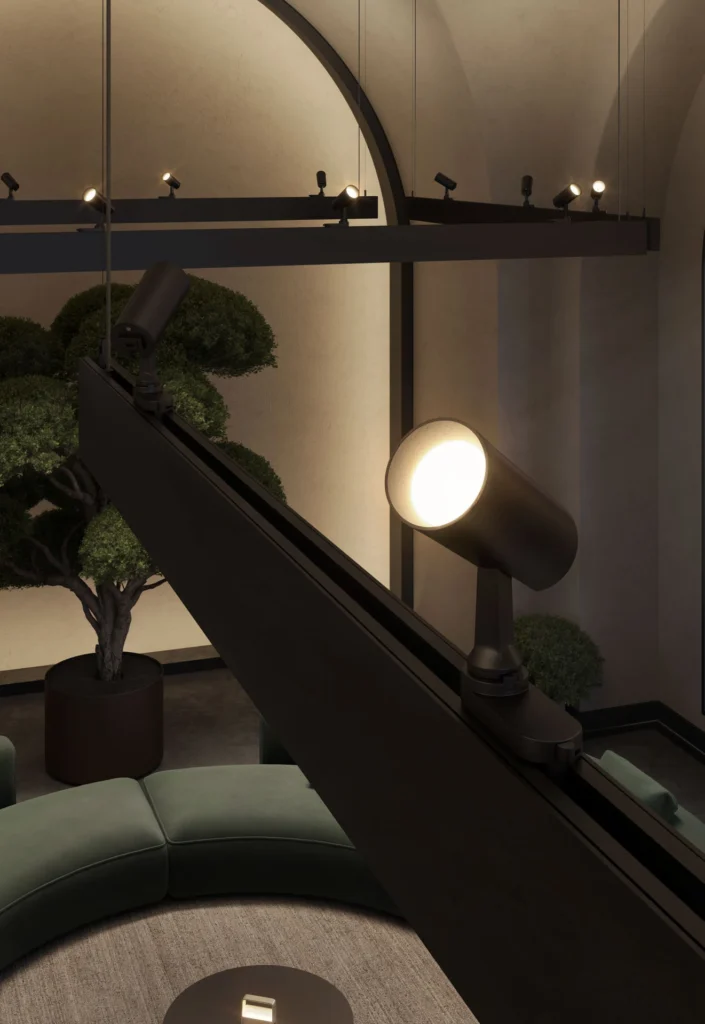

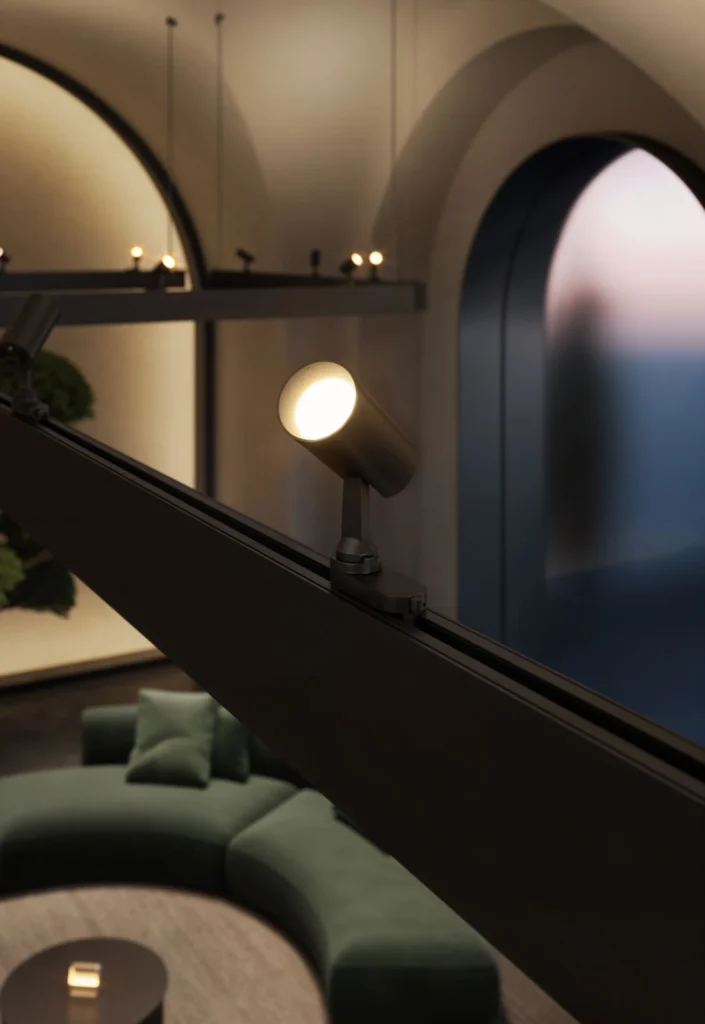

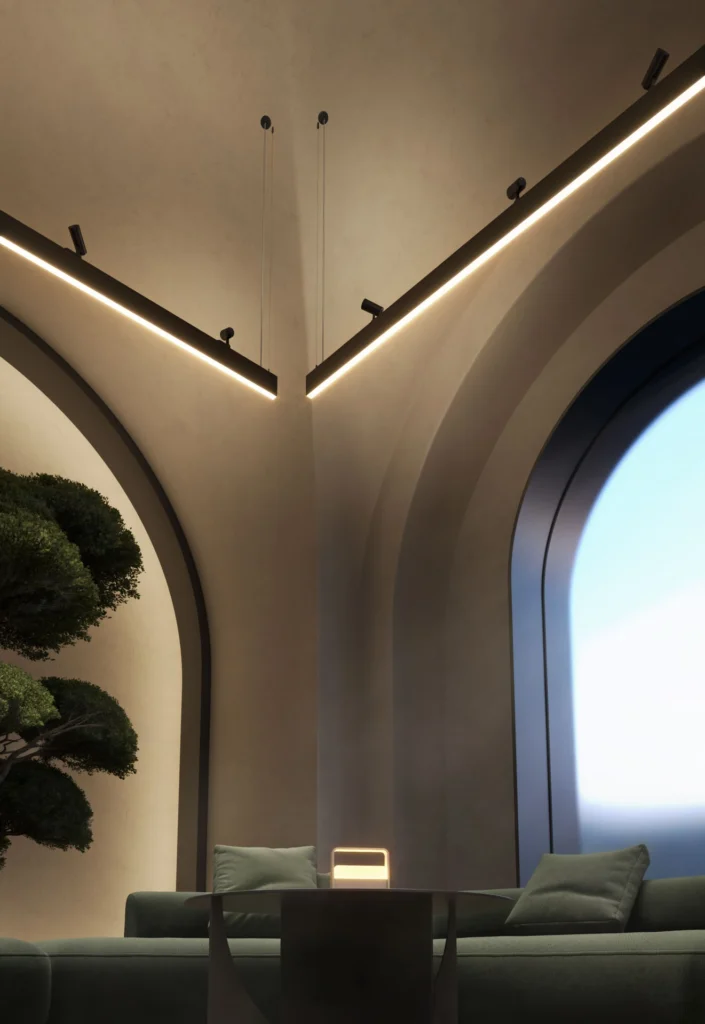

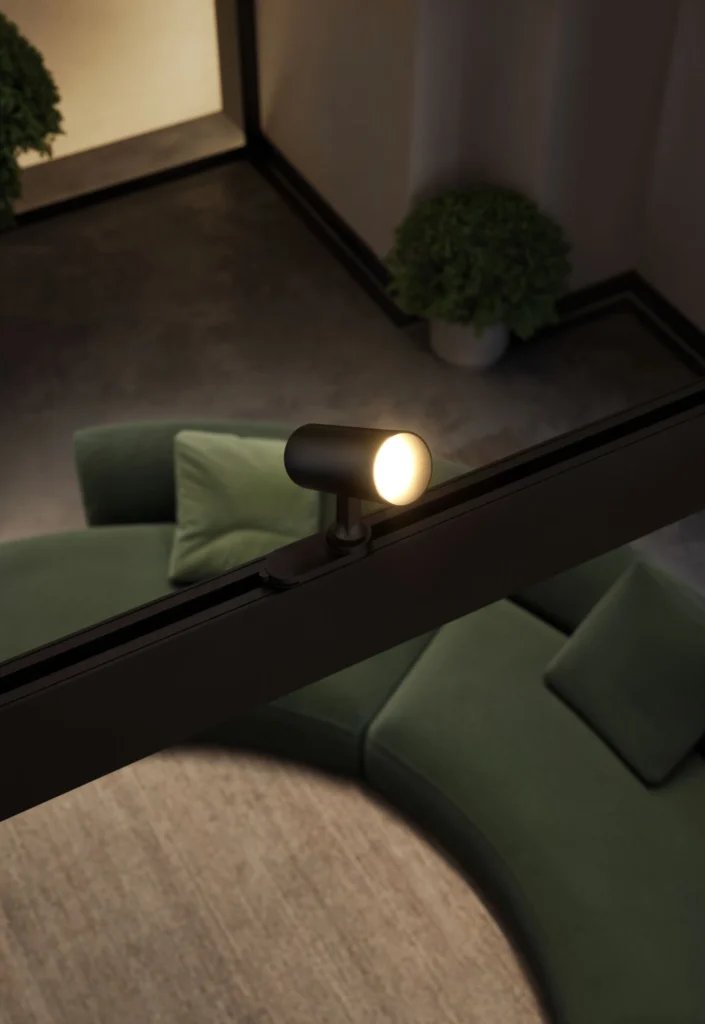

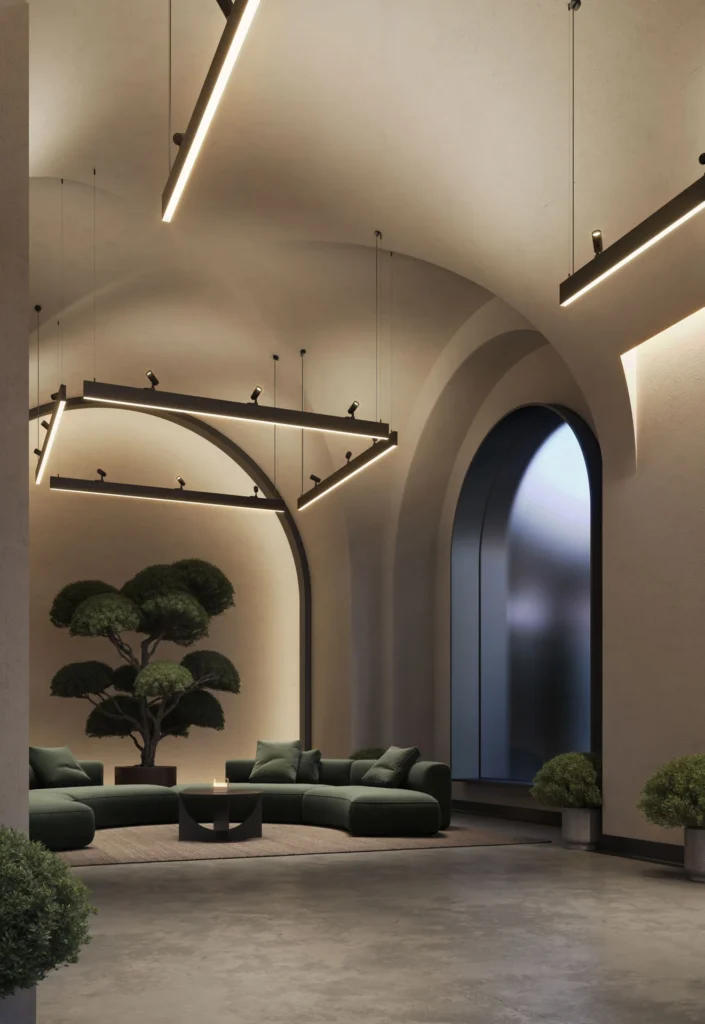

Dual is a linear pendant luminaire available in lengths of 1.130mm, 1.690mm and 2.530mm with power ranges of 1824W, 2835W and 4652W respectively. Designed with an opening angle of 81º, it can project light bidirectionally or unidirectionally (upward or downward). In its unidirectional version, the part without light projection, it integrates a threephase track that allows the installation of different types of spotlights to adjust the lighting to the requirements of each space.
This linear LED luminaire offers four color temperatures of 2.700K, 3.000K, 4.000K and 5.000K and allows to choose between Casambi, Push and DALI 2 technologies that ensure an intelligent and precise control of the light. It also has the UGR<19 index that reduces glare and guarantees good color rendering thanks to the CR>95 classification.

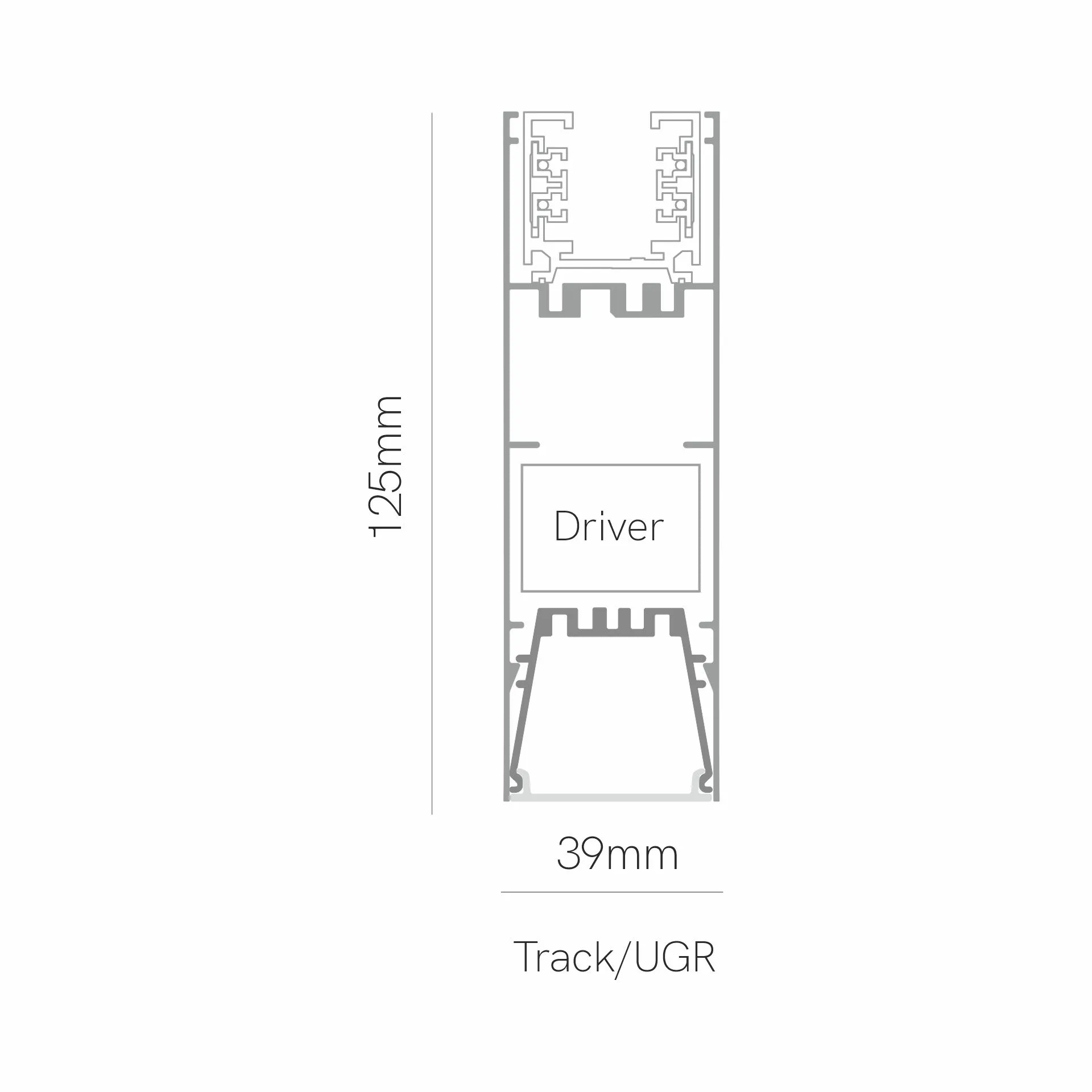

Dual incorporates a driver that is supplied with a recessed base and has all the necessary accessories for installation (power cable, suspension kit and covers). It offers customized cutting and handling with a maximum size of 3,37m and can also be customized in terms of color by our production department using the RAL palette.
Finishes and colours
Technical specifications
Rated power
24 W / 35 W / 52 W
Colour temperature
2700K / 3000K / 4000K / 5000K
Lumens
From 2688 to 7072
Lifespan
50000
Efficacy (lm/W)
112 / 128 / 136
CRI
>95
IP
IP20
UGR
<19
Catalogue references
Code
Name
593211
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 2700K WHITE
593212
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 2700K WHITE
593221
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 2700K WHITE
593222
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 2700K WHITE
593231
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 2700K BLACK
593232
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 2700K BLACK
593251
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 2700K WHITE
593252
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 2700K BLACK
593311
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 3000K WHITE
593312
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 3000K BLACK
593321
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 3000K WHITE
593322
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 3000K BLACK
593331
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 3000K WHITE
593332
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 3000K BLACK
593351
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 3000K WHITE
593352
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 3000K BLACK
593411
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 4000K WHITE
593412
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 4000K BLACK
593421
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 4000K WHITE
593422
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 4000K BLACK
593431
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 4000K WHITE
593432
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 4000K BLACK
593451
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 4000K WHITE
593452
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 4000K BLACK
593511
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 5000K WHITE
593512
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º ON/OFF 5000K BLACK
593521
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 5000K WHITE
593522
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º DALI 5000K BLACK
593531
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 5000K WHITE
593532
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º PUSH 5000K BLACK
593551
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 5000K WHITE
593552
DUAL INSERTED TRACK 1130mm 18-24W UGR 81º CASAMBI 5000K BLACK
595211
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 2700K WHITE
595212
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 2700K BLACK
595221
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 2700K WHITE
595222
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 2700K BLACK
595231
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 2700K WHITE
595232
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 2700K BLACK
595251
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 2700K WHITE
595252
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 2700K BLACK
595311
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 3000K WHITE
595312
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 3000K BLACK
595321
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 3000K WHITE
595322
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 3000K BLACK
595331
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 3000K WHITE
595332
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 3000K BLACK
595351
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 3000K WHITE
595352
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 3000K BLACK
595411
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 4000K WHITE
595412
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 4000K BLACK
595421
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 4000K WHITE
595422
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 4000K BLACK
595431
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 4000K WHITE
595432
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 4000K BLACK
595451
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 4000K WHITE
595452
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 4000K BLACK
595511
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 5000K WHITE
595512
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º ON/OFF 5000K BLACK
595521
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 5000K WHITE
595522
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º DALI 5000K BLACK
595531
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 5000K WHITE
595532
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º PUSH 5000K BLACK
595551
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 5000K WHITE
595552
DUAL INSERTED TRACK 1690mm 28-35W UGR 81º CASAMBI 5000K BLACK
597211
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 2700K WHITE
597212
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 2700K BLACK
597221
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 2700K WHITE
597222
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 2700K BLACK
597231
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 2700K WHITE
597232
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 2700K BLACK
597251
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 2700K WHITE
597252
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 2700K BLACK
597311
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 3000K WHITE
597312
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 3000K BLACK
597321
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 3000K WHITE
597322
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 3000K BLACK
597331
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 3000K WHITE
597332
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 3000K BLACK
597351
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 3000K WHITE
597352
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 3000K BLACK
597411
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 4000K WHITE
597412
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 4000K BLACK
597421
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 4000K WHITE
597422
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 4000K BLACK
597431
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 4000K WHITE
597432
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 4000K BLACK
597451
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 4000K WHITE
597452
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 4000K BLACK
597511
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 5000K WHITE
597512
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º ON/OFF 5000K BLACK
597521
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 5000K WHITE
597522
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º DALI 5000K BLACK
597531
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 5000K WHITE
597532
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º PUSH 5000K BLACK
597551
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 5000K WHITE
597552
DUAL INSERTED TRACK 2530mm 46-52W UGR 81º CASAMBI 5000K BLACK
