Box 17

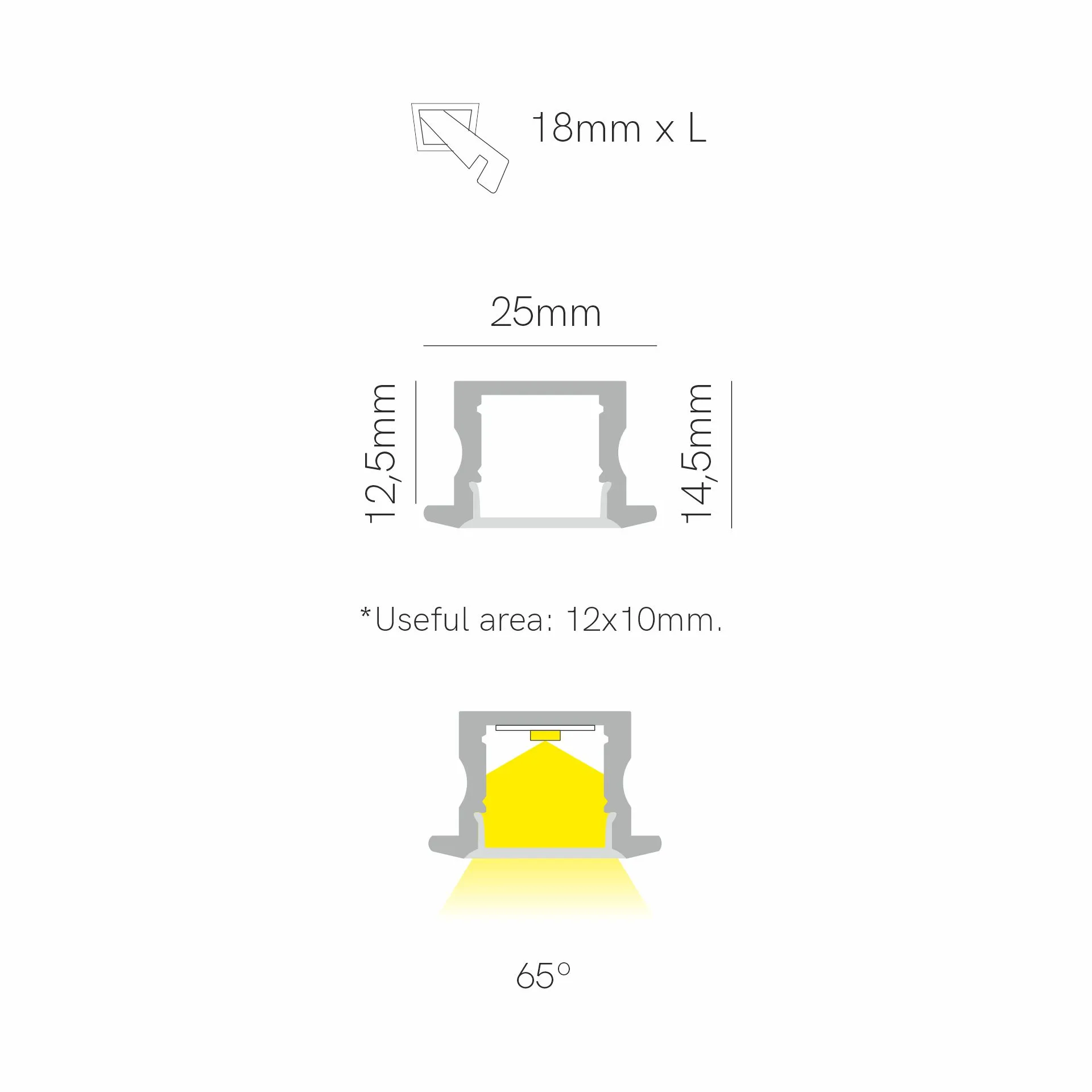

Box 17 is a deeper recessed aluminium profile, designed to integrate LED strips flush and to project a more controlled 65° beam. Its wings conceal the cut on ceilings and walls, while its deep geometry directs the light with precision, ideal for accent linear lighting integrated into the architecture.

It is supplied as a profile, with the LED strip provided separately, allowing the power (up to 20W/m) and colour temperature of each project to be chosen. Available in white, black and aluminium finishes, with the option of customisation through the RAL palette, it is completed with specific accessories such as opal and transparent diffusers, end caps and fixing clips for precise assembly and a uniform finish.

Finishes and colours

Technical specifications

IP
IP20

Catalogue references

Code Name
17119 METER PROFILE BOX17 MAX. 20W/m RECESSED 65º ALUMINIUM
17121 METER PROFILE BOX17 MAX. 20W/m RECESSED 65º WHITE MATTE
17122 METER PROFILE BOX17 MAX. 20W/m RECESSED 65º BLACK MATTE
