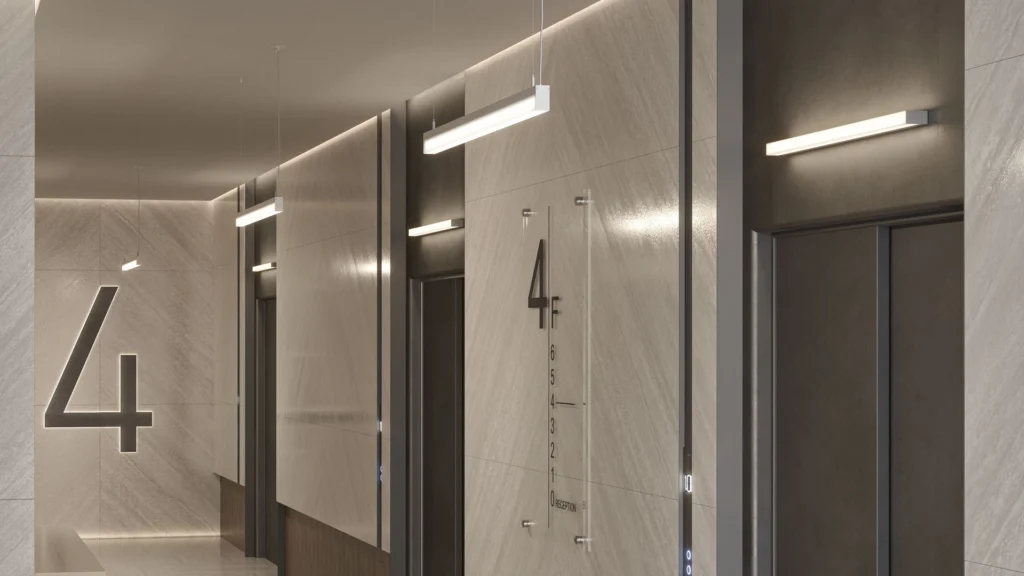

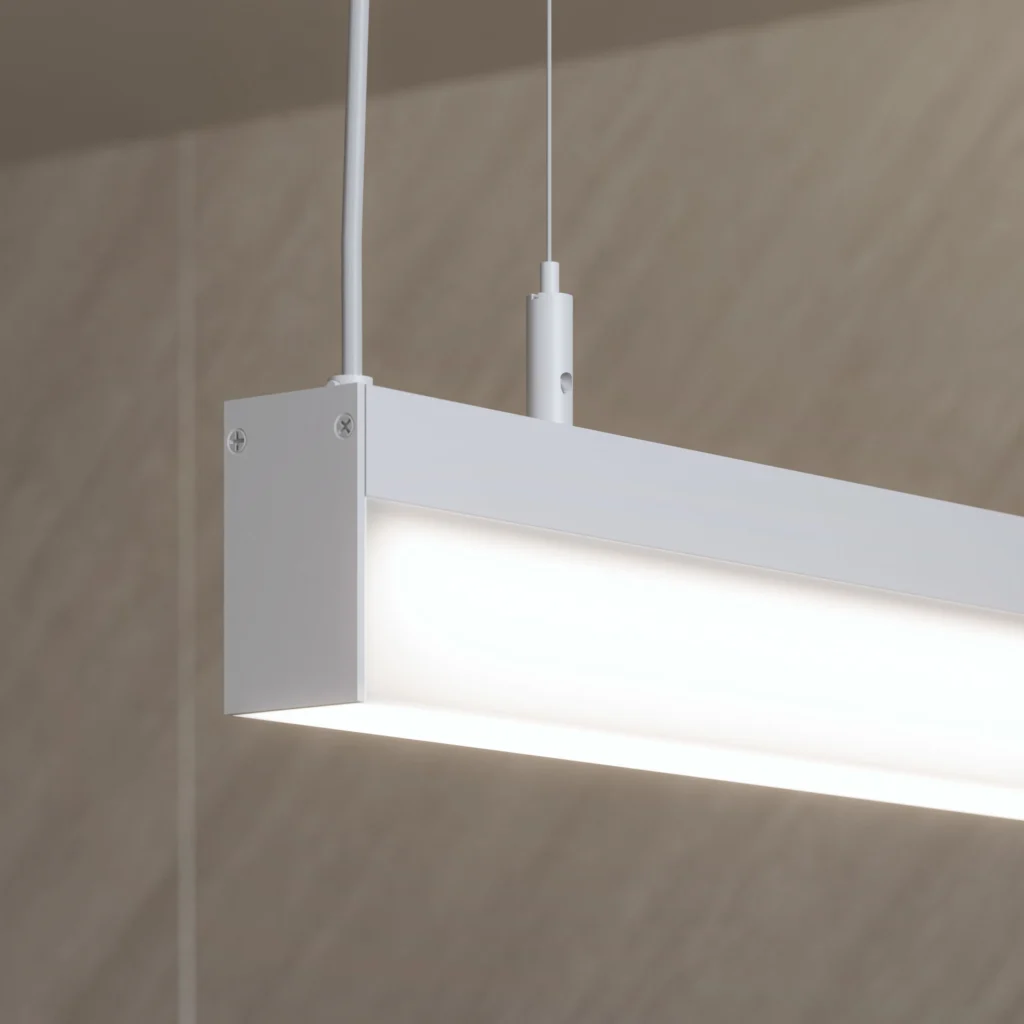

Lift ist eine personalisierbare lineare LED-Leuchte, die in einem sehr schmalen rechteckigen Querschnitt mit einem Opal-Diffusor ausgeführt ist, der das Licht umhüllend und gleichmäßig verteilt. Ihre nüchterne, architektonische Sprache macht sie zu einem vielseitigen Element, das sich dezent in Flure, Foyers, Verkehrszonen oder funktionale Räume einfügt, in denen das Licht den Weg strukturieren soll, ohne sich aufzudrängen.

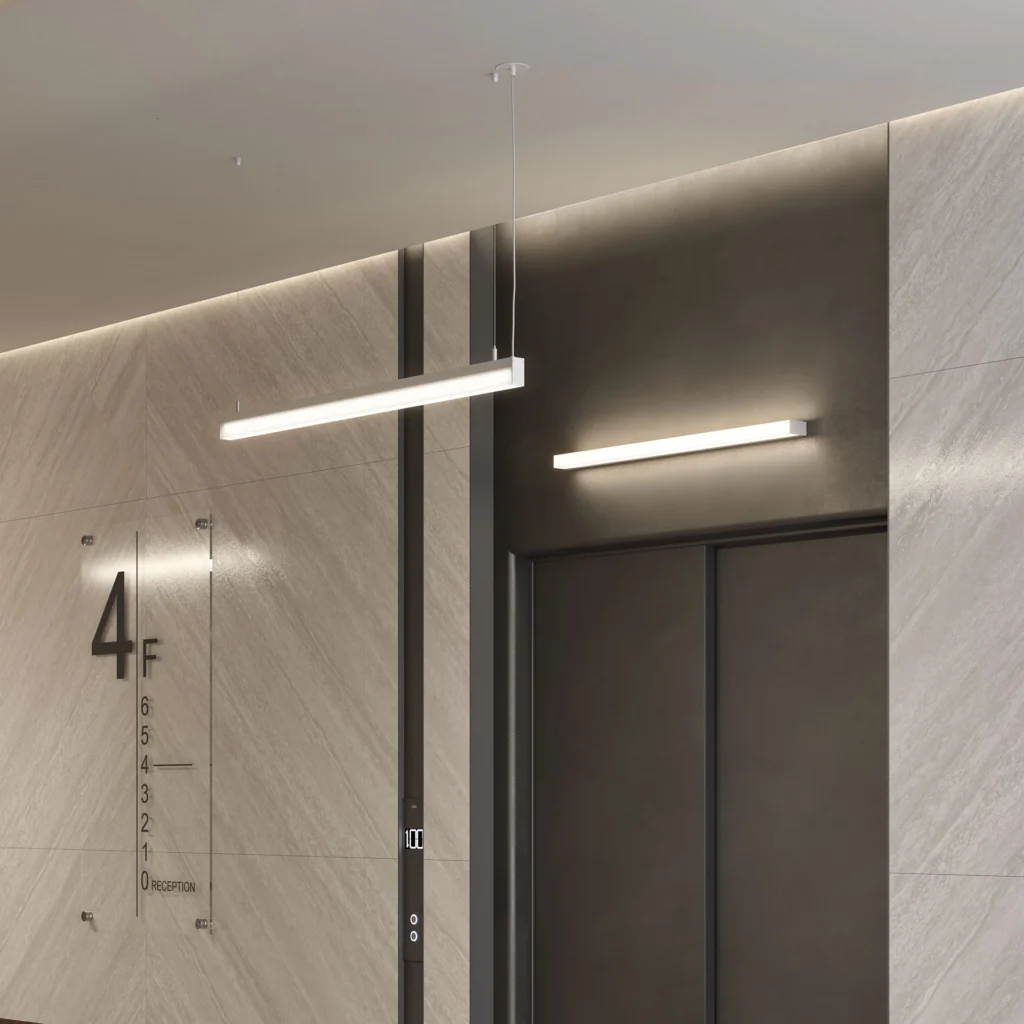

Ihre größte Besonderheit liegt in einer doppelten Installationsberufung: in der Pendelversion, ideal zur Definition von Höhen und zur Ordnung weiter Bereiche; in der Wandversion legt sie sich linear an, um Wege, Treppen oder Zugänge zu begleiten und das Licht mit minimaler Präsenz auf die vertikale Ebene zu bringen. Jede Konfiguration verfügt über ihre eigenen technischen Eigenschaften: Die Pendelversion bietet ein größeres Spektrum an Längen und Leistungen und ergänzt diese um RGB-W-Versionen und Versionen mit einstellbarem Weißton, kompatibel mit den Steuerungssystemen DALI, Push, Casambi und Tuya; die Wandversion wird in einem Format mit ON/OFF-Schaltung angeboten, um die funktionale Beleuchtung einfach zu lösen.

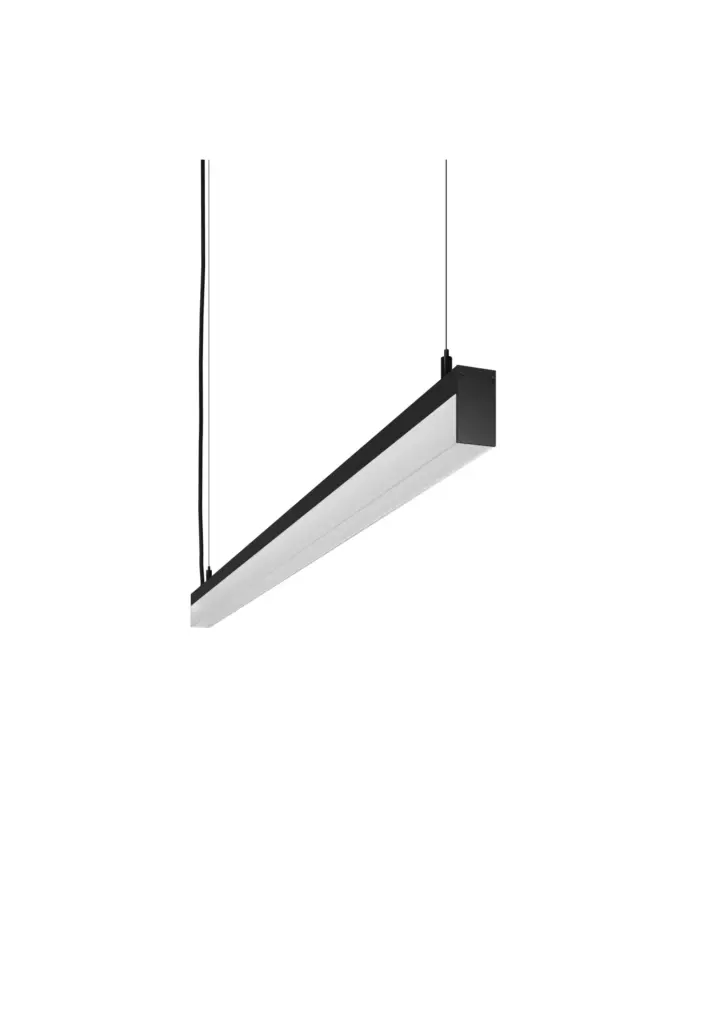

Mit einem Körper aus Aluminium in den Ausführungen Weiß und Schwarz sowie der Möglichkeit der Personalisierung über die RAL-Palette in der Pendelversion.
Oberflächen und Farben
Technische Spezifikationen
Nennleistung
De 24 W a 59 W
Farbtemperatur
2700K / 3000K / 4000K / RGBW(3000K) / 2700-5500K
Lumen
De 1650 a 9440
Lebensdauer
50000
Lichtausbeute (lm/W)
150 / 155 / 160 / 50 / 100
CRI
>90
IP
IP40
UGR
>22
Katalogreferenzen
Code
Name
663211
LIFT 1130mm 33W OPAL 135º ON/OFF 2700K MATT WEISS
663212
LIFT 1130mm 33W OPAL 135º ON/OFF 2700K MATT SCHWARZ
663221
LIFT 1130mm 33W OPAL 135º DALI 2700K MATT WEISS
663222
LIFT 1130mm 33W OPAL 135º DALI 2700K MATT SCHWARZ
663231
LIFT 1130mm 33W OPAL 135º PUSH 2700K MATT WEISS
663232
LIFT 1130mm 33W OPAL 135º PUSH 2700K MATT SCHWARZ
663251
LIFT 1130mm 33W OPAL 135º CASAMBI 2700K MATT WEISS
663252
LIFT 1130mm 33W OPAL 135º CASAMBI 2700K MATT SCHWARZ
663271
LIFT 1130mm 33W OPAL 135º TUYA 2700K MATT WEISS
663272
LIFT 1130mm 33W OPAL 135º TUYA 2700K MATT SCHWARZ
663311
LIFT 1130mm 33W OPAL 135º ON/OFF 3000K MATT WEISS
663312
LIFT 1130mm 33W OPAL 135º ON/OFF 3000K MATT SCHWARZ
663321
LIFT 1130mm 33W OPAL 135º DALI 3000K MATT WEISS
663322
LIFT 1130mm 33W OPAL 135º DALI 3000K MATT SCHWARZ
663331
LIFT 1130mm 33W OPAL 135º PUSH 3000K MATT WEISS
663332
LIFT 1130mm 33W OPAL 135º PUSH 3000K MATT SCHWARZ
663351
LIFT 1130mm 33W OPAL 135º CASAMBI 3000K MATT WEISS
663352
LIFT 1130mm 33W OPAL 135º CASAMBI 3000K MATT SCHWARZ
663371
LIFT 1130mm 33W OPAL 135º TUYA 3000K MATT WEISS
663372
LIFT 1130mm 33W OPAL 135º TUYA 3000K MATT SCHWARZ
663411
LIFT 1130mm 33W OPAL 135º ON/OFF 4000K MATT WEISS
663412
LIFT 1130mm 33W OPAL 135º ON/OFF 4000K MATT SCHWARZ
663421
LIFT 1130mm 33W OPAL 135º DALI 4000K MATT WEISS
663422
LIFT 1130mm 33W OPAL 135º DALI 4000K MATT SCHWARZ
663431
LIFT 1130mm 33W OPAL 135º PUSH 4000K MATT WEISS
663432
LIFT 1130mm 33W OPAL 135º PUSH 4000K MATT SCHWARZ
663451
LIFT 1130mm 33W OPAL 135º CASAMBI 4000K MATT WEISS
663452
LIFT 1130mm 33W OPAL 135º CASAMBI 4000K MATT SCHWARZ
663471
LIFT 1130mm 33W OPAL 135º TUYA 4000K MATT WEISS
663472
LIFT 1130mm 33W OPAL 135º TUYA 4000K MATT SCHWARZ
663851
LIFT 1130mm 33W OPAL 135º CASAMBI RGBW(2700K) MATT WEISS
663852
LIFT 1130mm 33W OPAL 135º CASAMBI RGBW(2700K) MATT SCHWARZ
663871
LIFT 1130mm 33W OPAL 135º TUYA RGBW(2700K) MATT WEISS
663872
LIFT 1130mm 33W OPAL 135º TUYA RGBW(2700K) MATT SCHWARZ
663951
LIFT 1130mm 33W OPAL 135º CASAMBI 2700K-5500K MATT WEISS
663952
LIFT 1130mm 33W OPAL 135º CASAMBI 2700K-5500K MATT SCHWARZ
663971
LIFT 1130mm 33W OPAL 135º TUYA 2700K-5500K MATT WEISS
663972
LIFT 1130mm 33W OPAL 135º TUYA 2700K-5500K MATT SCHWARZ
664211
LIFT 1420mm 42W OPAL 135º ON/OFF 2700K MATT WEISS
664212
LIFT 1420mm 42W OPAL 135º ON/OFF 2700K MATT SCHWARZ
664221
LIFT 1420mm 42W OPAL 135º DALI 2700K MATT WEISS
664222
LIFT 1420mm 42W OPAL 135º DALI 2700K MATT SCHWARZ
664231
LIFT 1420mm 42W OPAL 135º PUSH 2700K MATT WEISS
664232
LIFT 1420mm 42W OPAL 135º PUSH 2700K MATT SCHWARZ
664251
LIFT 1420mm 42W OPAL 135º CASAMBI 2700K MATT WEISS
664252
LIFT 1420mm 42W OPAL 135º CASAMBI 2700K MATT SCHWARZ
664271
LIFT 1420mm 42W OPAL 135º TUYA 2700K MATT WEISS
664272
LIFT 1420mm 42W OPAL 135º TUYA 2700K MATT SCHWARZ
664311
LIFT 1420mm 42W OPAL 135º ON/OFF 3000K MATT WEISS
664312
LIFT 1420mm 42W OPAL 135º ON/OFF 3000K MATT SCHWARZ
664321
LIFT 1420mm 42W OPAL 135º DALI 3000K MATT WEISS
664322
LIFT 1420mm 42W OPAL 135º DALI 3000K MATT SCHWARZ
664331
LIFT 1420mm 42W OPAL 135º PUSH 3000K MATT WEISS
664332
LIFT 1420mm 42W OPAL 135º PUSH 3000K MATT SCHWARZ
664351
LIFT 1420mm 42W OPAL 135º CASAMBI 3000K MATT WEISS
664352
LIFT 1420mm 42W OPAL 135º CASAMBI 3000K MATT SCHWARZ
664371
LIFT 1420mm 42W OPAL 135º TUYA 3000K MATT WEISS
664372
LIFT 1420mm 42W OPAL 135º TUYA 3000K MATT SCHWARZ
664411
LIFT 1420mm 42W OPAL 135º ON/OFF 4000K MATT WEISS
664412
LIFT 1420mm 42W OPAL 135º ON/OFF 4000K MATT SCHWARZ
664421
LIFT 1420mm 42W OPAL 135º DALI 4000K MATT WEISS
664422
LIFT 1420mm 42W OPAL 135º DALI 4000K MATT SCHWARZ
664431
LIFT 1420mm 42W OPAL 135º PUSH 4000K MATT WEISS
664432
LIFT 1420mm 42W OPAL 135º PUSH 4000K MATT SCHWARZ
664451
LIFT 1420mm 42W OPAL 135º CASAMBI 4000K MATT WEISS
664452
LIFT 1420mm 42W OPAL 135º CASAMBI 4000K MATT SCHWARZ
664471
LIFT 1420mm 42W OPAL 135º TUYA 4000K MATT WEISS
664472
LIFT 1420mm 42W OPAL 135º TUYA 4000K MATT SCHWARZ
664851
LIFT 1420mm 42W OPAL 135º CASAMBI RGBW(2700K) MATT WEISS
664852
LIFT 1420mm 42W OPAL 135º CASAMBI RGBW(2700K) MATT SCHWARZ
664871
LIFT 1420mm 42W OPAL 135º TUYA RGBW(2700K) MATT WEISS
664872
LIFT 1420mm 42W OPAL 135º TUYA RGBW(2700K) MATT SCHWARZ
664951
LIFT 1420mm 42W OPAL 135º CASAMBI 2700K-5500K MATT WEISS
664952
LIFT 1420mm 42W OPAL 135º CASAMBI 2700K-5500K MATT SCHWARZ
664971
LIFT 1420mm 42W OPAL 135º TUYA 2700K-5500K MATT WEISS
664972
LIFT 1420mm 42W OPAL 135º TUYA 2700K-5500K MATT SCHWARZ
665211
LIFT 1700mm 51W OPAL 135º ON/OFF 2700K MATT WEISS
665212
LIFT 1700mm 51W OPAL 135º ON/OFF 2700K MATT SCHWARZ
665221
LIFT 1700mm 51W OPAL 135º DALI 2700K MATT WEISS
665222
LIFT 1700mm 51W OPAL 135º DALI 2700K MATT SCHWARZ
665231
LIFT 1700mm 51W OPAL 135º PUSH 2700K MATT WEISS
665232
LIFT 1700mm 51W OPAL 135º PUSH 2700K MATT SCHWARZ
665251
LIFT 1700mm 51W OPAL 135º CASAMBI 2700K MATT WEISS
665252
LIFT 1700mm 51W OPAL 135º CASAMBI 2700K MATT SCHWARZ
665271
LIFT 1700mm 51W OPAL 135º TUYA 2700K MATT WEISS
665272
LIFT 1700mm 51W OPAL 135º TUYA 2700K MATT SCHWARZ
665311
LIFT 1700mm 51W OPAL 135º ON/OFF 3000K MATT WEISS
665312
LIFT 1700mm 51W OPAL 135º ON/OFF 3000K MATT SCHWARZ
665321
LIFT 1700mm 51W OPAL 135º DALI 3000K MATT WEISS
665322
LIFT 1700mm 51W OPAL 135º DALI 3000K MATT SCHWARZ
665331
LIFT 1700mm 51W OPAL 135º PUSH 3000K MATT WEISS
665332
LIFT 1700mm 51W OPAL 135º PUSH 3000K MATT SCHWARZ
665351
LIFT 1700mm 51W OPAL 135º CASAMBI 3000K MATT WEISS
665352
LIFT 1700mm 51W OPAL 135º CASAMBI 3000K MATT SCHWARZ
665371
LIFT 1700mm 51W OPAL 135º TUYA 3000K MATT WEISS
665372
LIFT 1700mm 51W OPAL 135º TUYA 3000K MATT SCHWARZ
665411
LIFT 1700mm 51W OPAL 135º ON/OFF 4000K MATT WEISS
665412
LIFT 1700mm 51W OPAL 135º ON/OFF 4000K MATT SCHWARZ
665421
LIFT 1700mm 51W OPAL 135º DALI 4000K MATT WEISS
665422
LIFT 1700mm 51W OPAL 135º DALI 4000K MATT SCHWARZ
665431
LIFT 1700mm 51W OPAL 135º PUSH 4000K MATT WEISS
665432
LIFT 1700mm 51W OPAL 135º PUSH 4000K MATT SCHWARZ
665451
LIFT 1700mm 51W OPAL 135º CASAMBI 4000K MATT WEISS
665452
LIFT 1700mm 51W OPAL 135º CASAMBI 4000K MATT SCHWARZ
665471
LIFT 1700mm 51W OPAL 135º TUYA 4000K MATT WEISS
665472
LIFT 1700mm 51W OPAL 135º TUYA 4000K MATT SCHWARZ
665851
LIFT 1700mm 51W OPAL 135º CASAMBI RGBW(2700K) MATT WEISS
665852
LIFT 1700mm 51W OPAL 135º CASAMBI RGBW(2700K) MATT SCHWARZ
665871
LIFT 1700mm 51W OPAL 135º TUYA RGBW(2700K) MATT WEISS
665872
LIFT 1700mm 51W OPAL 135º TUYA RGBW(2700K) MATT SCHWARZ
665951
LIFT 1700mm 51W OPAL 135º CASAMBI 2700K-5500K MATT WEISS
665952
LIFT 1700mm 51W OPAL 135º CASAMBI 2700K-5500K MATT SCHWARZ
665971
LIFT 1700mm 51W OPAL 135º TUYA 2700K-5500K MATT WEISS
665972
LIFT 1700mm 51W OPAL 135º TUYA 2700K-5500K MATT SCHWARZ
666211
LIFT 1970mm 59W OPAL 135º ON/OFF 2700K MATT WEISS
666212
LIFT 1970mm 59W OPAL 135º ON/OFF 2700K MATT SCHWARZ
666221
LIFT 1970mm 59W OPAL 135º DALI 2700K MATT WEISS
666222
LIFT 1970mm 59W OPAL 135º DALI 2700K MATT SCHWARZ
666231
LIFT 1970mm 59W OPAL 135º PUSH 2700K MATT WEISS
666232
LIFT 1970mm 59W OPAL 135º PUSH 2700K MATT SCHWARZ
666251
LIFT 1970mm 59W OPAL 135º CASAMBI 2700K MATT WEISS
666252
LIFT 1970mm 59W OPAL 135º CASAMBI 2700K MATT SCHWARZ
666271
LIFT 1970mm 59W OPAL 135º TUYA 2700K MATT WEISS
666272
LIFT 1970mm 59W OPAL 135º TUYA 2700K MATT SCHWARZ
666311
LIFT 1970mm 59W OPAL 135º ON/OFF 3000K MATT WEISS
666312
LIFT 1970mm 59W OPAL 135º ON/OFF 3000K MATT SCHWARZ
666321
LIFT 1970mm 59W OPAL 135º DALI 3000K MATT WEISS
666322
LIFT 1970mm 59W OPAL 135º DALI 3000K MATT SCHWARZ
666331
LIFT 1970mm 59W OPAL 135º PUSH 3000K MATT WEISS
666332
LIFT 1970mm 59W OPAL 135º PUSH 3000K MATT SCHWARZ
666351
LIFT 1970mm 59W OPAL 135º CASAMBI 3000K MATT WEISS
666352
LIFT 1970mm 59W OPAL 135º CASAMBI 3000K MATT SCHWARZ
666371
LIFT 1970mm 59W OPAL 135º TUYA 3000K MATT WEISS
666372
LIFT 1970mm 59W OPAL 135º TUYA 3000K MATT SCHWARZ
666411
LIFT 1970mm 59W OPAL 135º ON/OFF 4000K MATT WEISS
666412
LIFT 1970mm 59W OPAL 135º ON/OFF 4000K MATT SCHWARZ
666421
LIFT 1970mm 59W OPAL 135º DALI 4000K MATT WEISS
666422
LIFT 1970mm 59W OPAL 135º DALI 4000K MATT SCHWARZ
666431
LIFT 1970mm 59W OPAL 135º PUSH 4000K MATT WEISS
666432
LIFT 1970mm 59W OPAL 135º PUSH 4000K MATT SCHWARZ
666451
LIFT 1970mm 59W OPAL 135º CASAMBI 4000K MATT WEISS
666452
LIFT 1970mm 59W OPAL 135º CASAMBI 4000K MATT SCHWARZ
666471
LIFT 1970mm 59W OPAL 135º TUYA 4000K MATT WEISS
666472
LIFT 1970mm 59W OPAL 135º TUYA 4000K MATT SCHWARZ
666851
LIFT 1970mm 59W OPAL 135º CASAMBI RGBW(2700K) MATT WEISS
666852
LIFT 1970mm 59W OPAL 135º CASAMBI RGBW(2700K) MATT SCHWARZ
666871
LIFT 1970mm 59W OPAL 135º TUYA RGBW(2700K) MATT WEISS
666872
LIFT 1970mm 59W OPAL 135º TUYA RGBW(2700K) MATT SCHWARZ
666951
LIFT 1970mm 59W OPAL 135º CASAMBI 2700K-5500K MATT WEISS
666952
LIFT 1970mm 59W OPAL 135º CASAMBI 2700K-5500K MATT SCHWARZ
666971
LIFT 1970mm 59W OPAL 135º TUYA 2700K-5500K MATT WEISS
666972
LIFT 1970mm 59W OPAL 135º TUYA 2700K-5500K MATT SCHWARZ
