CURVE TRAM 48V

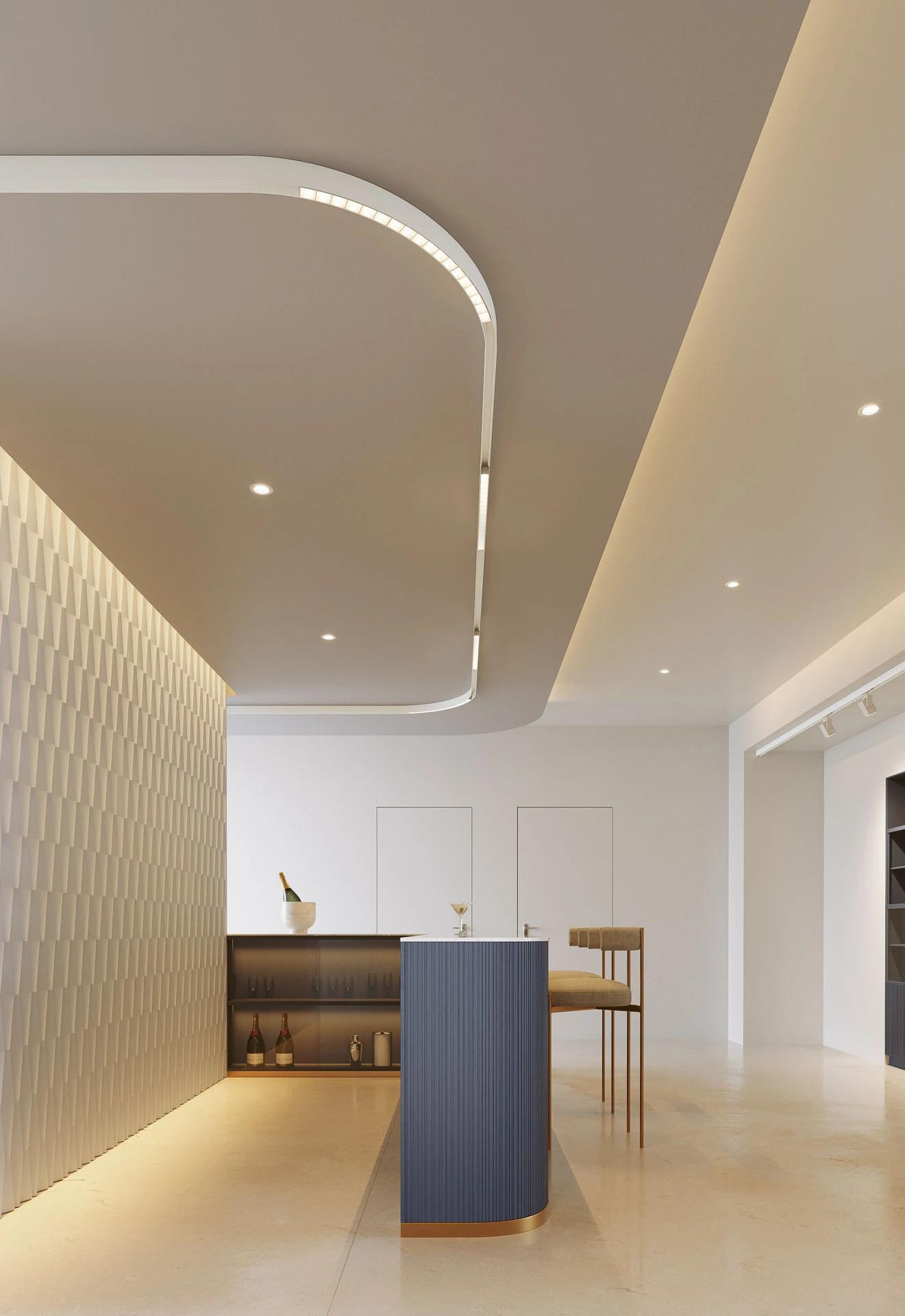

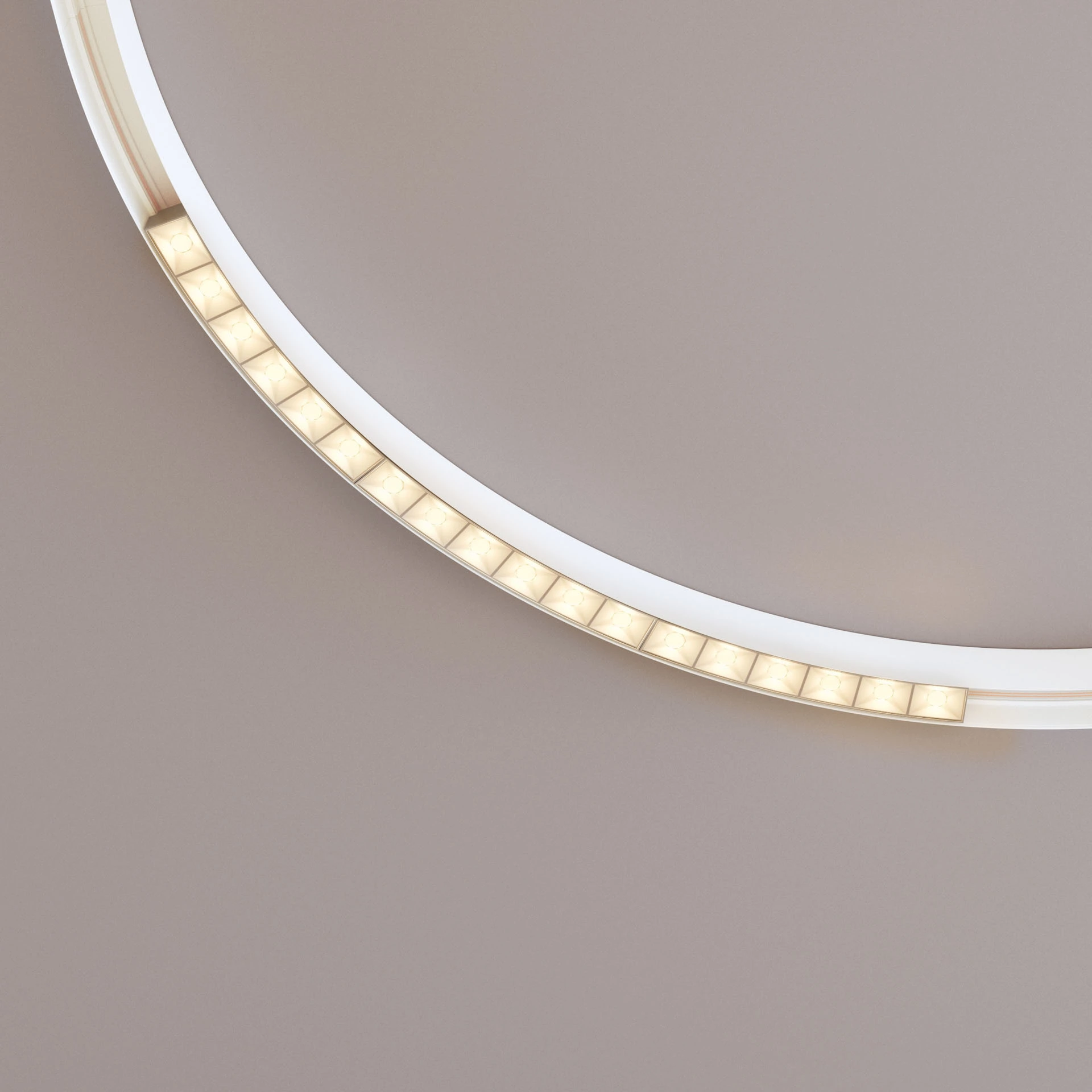

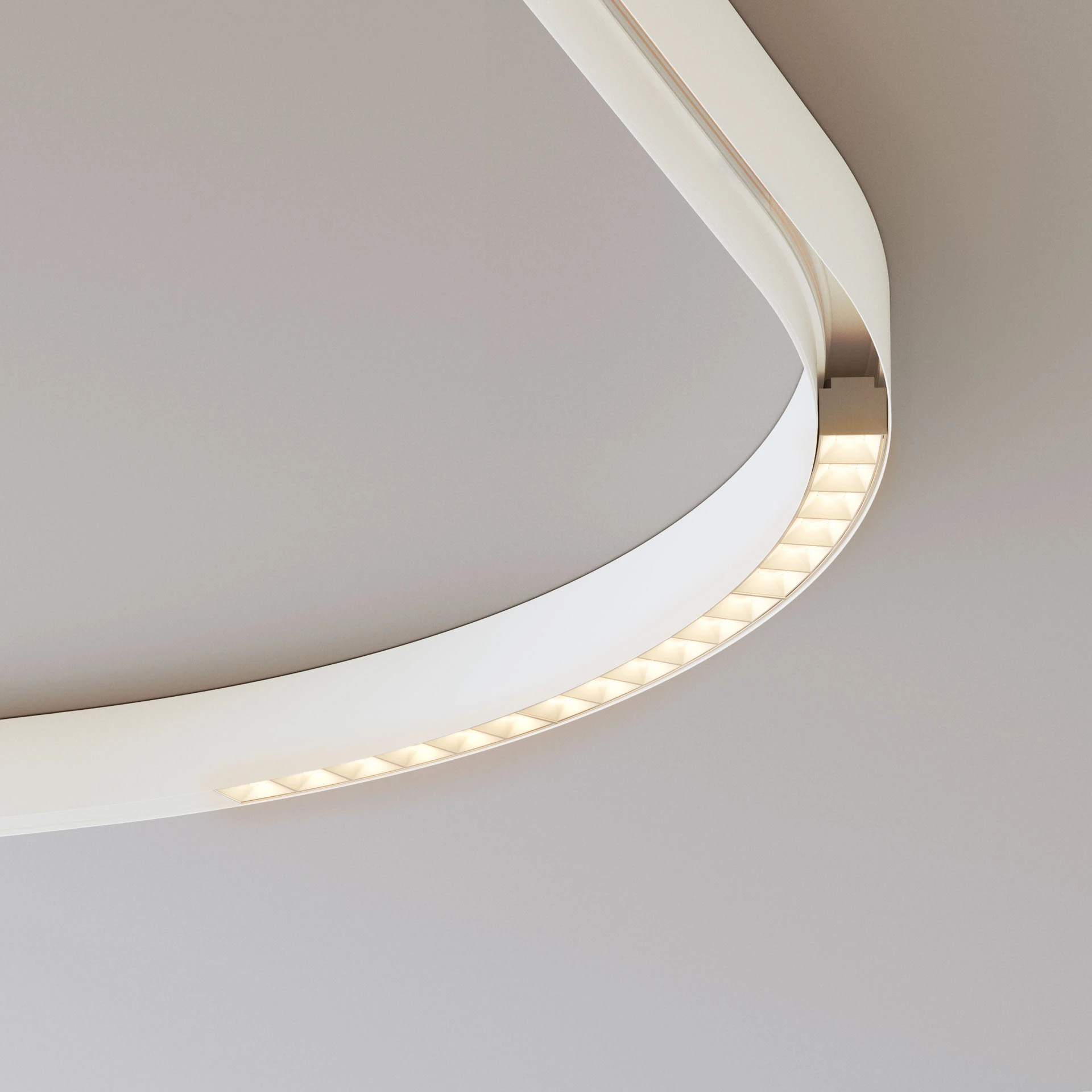

Curve Tram 48V is a curved magnetic track luminaire with 6W of power. Designed for 48V DC magnetic track installation, it allows installation on curved track sections. Its 36º opening angle projects a precise illumination in interior rooms through various light repetitions.

This LED track luminaire offers two color temperatures of 2,700K and 3,000K and is CRI>90 certified for true color rendering.

Curve Tram 48V has a UGR<19 rating that minimizes glare and is available in black and white finishes.

CURVE TRAM 48V
NANO TRAM 48V
MINI TRAM 48V

CURVE TRAM 48V

Awaiting product image
Awaiting product image
Awaiting product image
Nominal tension :
48V
Nominal power :
6W
Life :
30.000
Max and min temperature :
+40ºC-20ºC
CRI :
>90
IP :
IP20
Lumens :
500
Units per box :
1/40
UGR :
<19
  • 5309: CURVE TRAM 48V 6W CARRIL MAGNETICO 36º 2700K BLANCO
  • 5310: CURVE TRAM 48V 6W CARRIL MAGNETICO 36º 3000K BLANCO
  • 5311: CURVE TRAM 48V 6W CARRIL MAGNETICO 36º 2700K NEGRO
  • 5312: CURVE TRAM 48V 6W CARRIL MAGNETICO 36º 3000K NEGRO
Catalogue
Instructions
Data sheets
3D files
